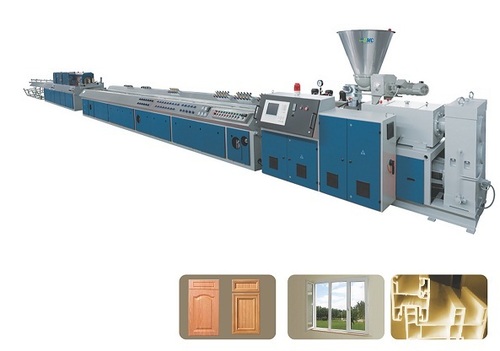

Single Extruder For PVC Profile

Single Extruder For PVC Profile
Single Extruder For PVC Profile
Product Code : 19
Brand Name : HPMC
Product Description

PVC profile extrusion line is fabricated by Hindustan Plastic & Machine Corporation in a number of models possessing distinct values such as minimum, maximum pipe OD (mm), maximal plasticizing capability (kg/hr) and speed variation (rpm).

Salient Features:

  • Barrier-type (Double thread)  for PVC Profile ensures continuous melt eveness, outstanding process control and consistency in unmatched end-product quality.
  • A wide range of extruders with diameters spans from 20mm to 150mm.
  • Fabricated to streamline the process of all pelletized materials.
  • Output ratio for polyolefins goes up to 450 Kg/hr.

Parts of single extruder:

Die Head

  • Die head for the smaller sizes of pipe spans from 16mm - 50 mm with the spidermade out of S.S..
  • Die head for the larger sizes of pipe spans from 40mm - 160mm with the spider made out of S.S..

Cooling unit

  • Vacuum tank for the smaller sizes of pipe spans from 16mm - 50mm for desired control and accurate sizing of the pipe.
  • Water tank provided with sprays as well as goes without sprays for effectively cooling up the pipe.

Caterpuller

  • Drive is carried out through distinctive geared motor for both of the rollers of the haul off.
  • It resists to wrinkles on pipe and ensures optimum flow of the pipe.

Cutting Saw

  • Integrated with pneumatic cylinder for giving required gripping.
  • Limit switch is incorporated to perceive the preset length of the pipe.

Tipping Chute

  • Integrated with pneumatic cylinder for complete gripping.
  • Limit switch is incorporated to understand the preset length of the pipe.

Technical Specifications:

MACHINE MODELS HPMC 65 HPMC 75 HPMC 90
Min Pipe OD ( mm) 16 40 63
Max Pipe OD (mm) 50 110 160
Max Plasticizing Capacity (Kg/hr) 50 80 120
Max Output (Kg/hr) 40 60 90
Main Drive (Kw) 11 15 22.5
Heating
Barrel ( Kw) 8 12 15
Die ( Kw) 2 5 5
 Speed Variation(RPM) 15 - 45 15 - 45 15 - 45
Vacuum Sizing Tank
Pump Drive ( KW) 0.75 0 0
Length ( Mtrs) 2 0 0
Water Circulating Requirement( Ltrs/min) 450 0 0
Cooling Tanks
Length ( Ltrs) 0 3 4
Water Circulating Requirement ( Ltrs/Min) 0 450 500
Haul Off
Drive Range (KW) 0.75 1.5 1.5
Pulling Speed(mts/min)Range 1 0.735 to 1.147 0.4 to 2.0 0.4 to 2.0
Pulling Speed(mts/min) Range 2 0.71 to 3.55 1.4 to 7.2 1.4 to 7.2
Cutting Saw
Saw Diameter ( mm) 300 400 500
Saw Drive Load ( KW) 0.75/2800 0.75/2800 0.75/2800
